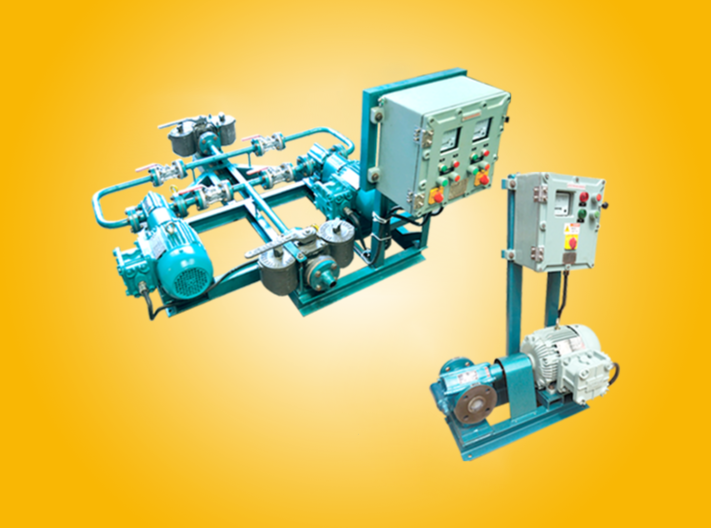

F-Series Fuelflo Gear Pumps
PRODUCTS
The F-Series Fuelflo pump’s construction has been given all the critical & required considerations for pumping Liquids like various types of Fuels which basically bears the quality of being Non-Lubricative, of Low Specific-Gravity & average to high Flash-Points. Hence, these pumps can also be easily applied for Solvents & other Non-Lubricative Liquids with similar properties...
Available in :
Sizes : ½” upto 8” Suction/Discharge.
Flow-rate : 20 LPM to 5000 LPM @ 1500rpm.
Max. Disch. Pressure : 25 Kg/cm2.
Max. Temperature : Ambient.
Application :
Diesel Transfers, High Speed Diesel (HSD) Transfers, Light Diesel Oil (LDO) Transfers, Kerosene
Transfers, Mineral Oil Transfers, Furnace Oil Transfers etc.
| Model | Port Options | Capacity in Ltr/Min (LPM) @ 1500 RPM | Recommended Horse-Power (hp) at Different Pressures | |||||
|---|---|---|---|---|---|---|---|---|
| Suction & Discharge (BSP Threaded Ends) |
Suction & Discharge (Flanged Ends) |
At 50 P.S.I. (H.P.) |
At 100 P.S.I. (H.P.) |
At 200 P.S.I. (H.P.) |
At 350 P.S.I. (H.P.) |
At 500 P.S.I. (H.P.) |
||
| FA-1 | ½" x ½" | --- | 20 | 0.75 | 1.5 | 3.0 | 5.0 | --- |
| FB-1 | ¾" x ¾" | --- | 30 | 1.0 | 1.5 | 4.0 | 5.0 | 7.5 |
| FB-2 | 1" x 1" | 1" x 1" | 40 | 1.5 | 2.0 | 5.0 | 7.5 | 12.5 |
| FB-3 | 1" x 1" | 1" x 1" | 50 | 1.5 | 3.0 | 5.0 | 10.0 | 15.0 |
| FB-4 | 1" x 1" | 1" x 1" | 60 | 2.0 | 4.0 | 7.5 | 12.5 | 15.0 |
| FC-1 | 1½" x 1½" | 1½" x 1½" | 80 | 3.0 | 5.0 | 10.0 | 15.0 | 20.0 |
| FC-2 | 1½" x 1½" | 1½" x 1½" | 100 | 3.0 | 5.0 | 12.5 | 20.0 | 25.0 |
| FC-3 | 2" x 2" | 2" x 2" | 150 | 4.0 | 7.5 | 15.0 | 25.0 | 40.0 |
| FC-4 | 2" x 2" | 2" x 2" | 200 | 5.0 | 7.5 | 15.0 | 25.0 | 40.0 |
| FC-5 | --- | 2½" x 2½" | 250 | 5.0 | 10.0 | 20.0 | 30.0 | 50.0 |
| FD-1 | --- | 2½" x 2½" | 300 | 7.5 | 12.5 | 25.0 | 40.0 | 60.0 |
| FD-2 | --- | 3" x 3" | 400 | 10.0 | 15.0 | 30.0 | 50.0 | 75.0 |
| FD-3 | --- | 3" x 3" | 500 | 10.0 | 20.0 | 40.0 | 60.0 | --- |
| FD-4 | --- | 4" x 4" | 1000 | 20.0 | 30.0 | 60.0 | --- | --- |
| FD-5 | --- | 4" x 4" | 1500 | 30.0 | 50.0 | 100.0 | --- | --- |
| FD-6 | --- | 6" x 6" | 2000 | 40.0 | 80.0 | --- | --- | --- |
| FD-7 | --- | 6" x 6" | 3000 | 60.0 | 100.0 | --- | --- | --- |
| FD-8 | --- | 8" x 8" | 5000 | 100.0 | 215.0 | --- | --- | --- |
RATED RPM : - @1500 rpm.
MOUNTING TYPE : - Horizontal Foot Mounting.
- Trolley Mounted.
DRIVE TYPE : - Directly Coupled Type.
SUCTION CONDITION : - To Be Compulsorily Flooded.
SUCTION FOOT-VALVE / NRV : - To be Compulsorily Installed for all Negative Suction
Conditions.
(Client’s Scope)
PRESSURE RELIEF VALVE : - Externally Adjustable Integral Relief Valve
PUMP BODY & COVERS : - Graded Cast Iron
GEARS & SHAFTS : - EN-24 Hardened & Ground
GEAR TYPE : - Spur.
- Single Helical.
- Double Helical.
System.
SHAFT SEALING TYPE : - Mechanical Seal System.
- Oilseal System.
BEARING TYPE : - Bi-Metallic Bronze Bushes (4 Nos.)
