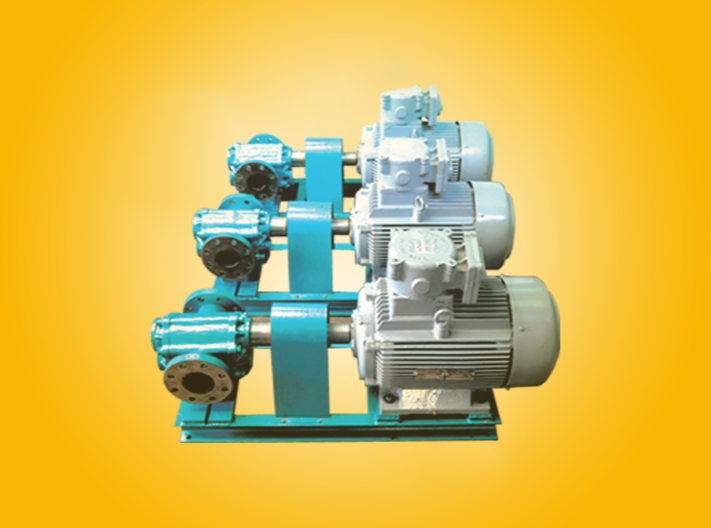

E-Series EBflo External Bearing Type Gear Pumps
PRODUCTS

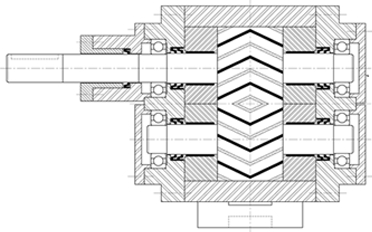

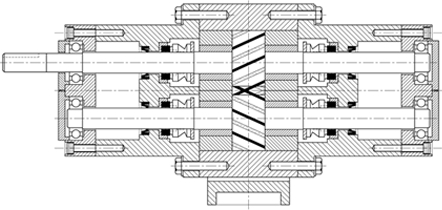

The E-Series EBflo External Bearing Type pumps have been designed to cater long service-life pumping of medium-corrossive / non-lubricant / resins / food-grade and similar liquids wherein 4 Nos. of Externally Provided Ball-Bearings that bears no contact with the pumping medium are included to enhance the pump-life which is in-addition to the internal Bush-Bearings.
Available in :
Sizes : 1½” upto 6 ” Suction/Discharge.
Flow-rate : 50 LPM to 1000 LPM @ 750 rpm.
Max. Disch. Pressure : 20 Kg/cm2.
Max. Temperature : 250℃.
Application :
Polyester Styrene Transfers, Chemicals/Solvents, Resins, Non-Lubricative Liquids, Food Grade Liquids Etc.
| Model | Suction & Discharge (Flanged Ends) |
Capacity @ Recommended Operating Speed of 750 RPM | Recommended Horse-Power (hp) at Different Pressures | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For 50 P.S.I. (H.P.) |
For 100 P.S.I. (H.P.) |
For 200 P.S.I. (H.P.) |
For 350 P.S.I. (H.P.) |
For 500 P.S.I. (H.P.) |
||||||||
| EC‐2 | 1½" x 1½" | 50 LPM (3m3/hr) | 2.0 | 3.0 | 5.0 | 10.0 | 12.5 | |||||
| EC‐3 | 2" x 2" | 75 LPM (4.5m3/hr) | 3.0 | 5.0 | 7.5 | 12.5 | 20.0 | |||||
| EC‐4 | 2" x 2" | 100 LPM (6m3/hr) | 4.0 | 7.5 | 10.0 | 20.0 | 30.0 | |||||
| EC‐5 | 2½" x 2½" | 125 LPM (7.5m3/hr) | 4.0 | 7.5 | 12.5 | 25.0 | 40.0 | |||||
| ED‐1 | 2½" x 2½" | 150 LPM (9m3/hr) | 5.0 | 10.0 | 15.0 | 30.0 | 40.0 | |||||
| ED‐2 | 3" x 3" | 200 LPM (12m3/hr) | 7.5 | 10.0 | 20.0 | 40.0 | 50.0 | |||||
| ED‐3 | 3" x 3" | 250 LPM (15m3/hr) | 7.5 | 12.5 | 25.0 | 50.0 | 60.0 | |||||
| ED‐3SP | 4" x 4" | 375 LPM (22.5m3/hr) | 10.0 | 20.0 | 40.0 | 60.0 | --- | |||||
| ED‐4 | 4" x 4" | 500 LPM (30m3/hr) | 12.5 | 25.0 | 50.0 | --- | --- | |||||
| ED‐5 | 4" x 4" | 750 LPM (45m3/hr) | 20.0 | 40.0 | 75.0 | --- | --- | |||||
| ED‐6 | 6" x 6" | 1000 LPM (60m3/hr) | 30.0 | 50.0 | --- | --- | --- | |||||
RATED RPM : - @ 750 rpm Recommended.
MOUNTING TYPE : - Horizontal Foot Mounting.
- Vertical Assembly. (For V-Belt Driven)
DRIVE TYPE : - Directly Coupled Type.
- V-Belt Driven Type.
- In-Line Helical Gearbox Driven
SUCTION CONDITION : - To be Compulsorily Flooded.
SUCTION FOOT-VALVE / NRV : - To be Compulsorily Installed for all Negative Suction Conditions.
(Client’s Scope)
PUMP BODY & COVERS : - Graded Cast Iron.
- Cast Steel.
- Stainless Steel.
GEARS & SHAFTS : - EN-24 Harden & Ground.
- Stainless Steel.
GEAR TYPE : - Single / Double Helical.
SHAFT SEALING TYPE : - Oilseal System.
- Mechanical Seal System.
INTERNAL BEARING TYPE (4 Nos.) : - Bi-Metallic Bronze Bushes.
- Teflon Bushes (Carbon/Graphite Filled)
EXTERNAL BEARING TYPE (4 Nos.) : - Deep Groove Ball Bearings.
