Ajay Engineering

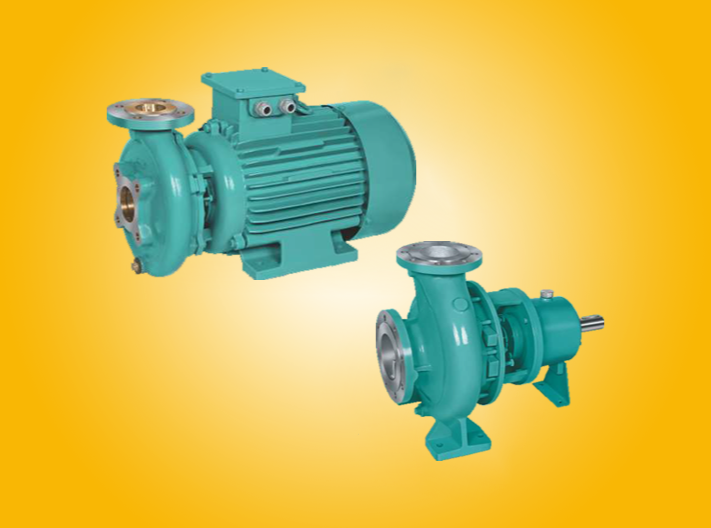

The Horizontal Centrifugal Monoblock (Pump & Motor) have been combined to form a single unit type pump fitted with single stage closed impeller in volute casing having axial end-suction and vertical centerline delivery.

The Horizontal Centrifugal Back-Pull-Out type pump is fitted with single stage closed impeller in foot mounted volute casing having axial end-suction and vertical centerline delivery.

Application :
Industrial usage such as Cooling, Heating, Circulating, Boosting, Air-Conditioning, Refrigeration & Cold Storage Systems.Agriculture usage such as General Irrigation, Sprinkler Irrigation etc.Civil usage such as water supply schemes for buildings.To handle Hydrocarbons, Volatile Liquids, Thermic Fluids in Chemical / Petrochemical / Fertilizer / Sugar & other Process Industries.

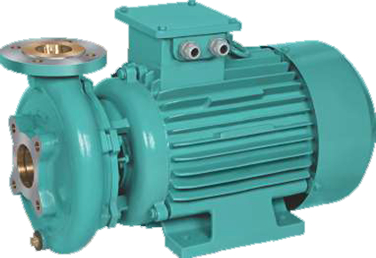

OPERATING DATA CENTRIFUGAL MONOBLOCK PUMP SETS
HEAD RANGE	UP TO 88 METER
CAPACITY RANGE	UPTO 4000 LPM
SEALING ARRANGEMENT	MECHANICAL SEAL / GLAND PACKING
OPERATING TEMPERATURE	UP TO 70℃
RATING	0.75 Kw to 22.5 kW (2 POLE)
SUPPLY SYSTEM	3φ - 380 / 415 Volts - 50 / 60 Hz - AC
INSULATION	CLASS B / F
PROTECTION	IP 44 / 55
ENCLOSURE	TOTALLY ENCLOSED FAN COOLED (TEFC)
ROTOR TYPE	SQUIRREL CAGE ROTOR (SCR)
OPERATIONAL DUTY	S1
M.O.C.	Grey Cast Iron, Bronze, Stainless Steel 316 / 304.
CUSTOM-BUILT DESIGN	Motors with different Supply Voltage & Supply Frequency can be offered upon request.

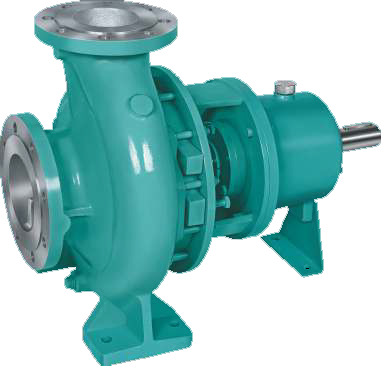

OPERATING DATA END SUCTION CENTRIFUGAL PROCESS PUMPS
OPERATING RANGE	SPEED	HEAD	DISCHARGE
	1450 RPM	UP TO 60 Meter	UP TO 350 m³/hr
	2900 RPM	UP TO 150 Meter	UP TO 380 m³/hr
SEALING ARRANGEMENT	MECHANICAL SEAL / GLAND PACKING
OPERATING TEMPERATURE	UP TO 300℃
OPERATIONAL DUTY	S1
M.O.C.	Grey Cast Iron, Bronze, Stainless Steel 316 / 304, Cast Steel, Alloy 20, Ni-Hard Cast Iron.
CUSTOM-BUILT DESIGN	Pumps with different operating speed & temperature ratings can be offered on request.

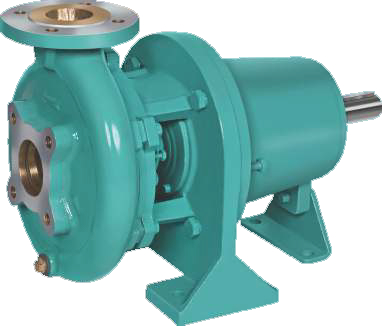

OPERATING DATA CENTRIFUGAL PUMP SETS
HEAD RANGE	UP TO 88 METER
CAPACITY RANGE	UPTO 4000 LPM
SEALING ARRANGEMENT	MECHANICAL SEAL / GLAND PACKING
OPERATING TEMPERATURE	UP TO 105℃
POWER AT SHAFT	UP TO 22.5 kW
OPERATING SPEED	2900 RPM / 3500 RPM
OPERATIONAL DUTY	S1
M.O.C.	Grey Cast Iron, Bronze, Stainless Steel 316 / 304.
CUSTOM-BUILT DESIGN	Pumps with different operating speed & temperature rating can be offered on request.
