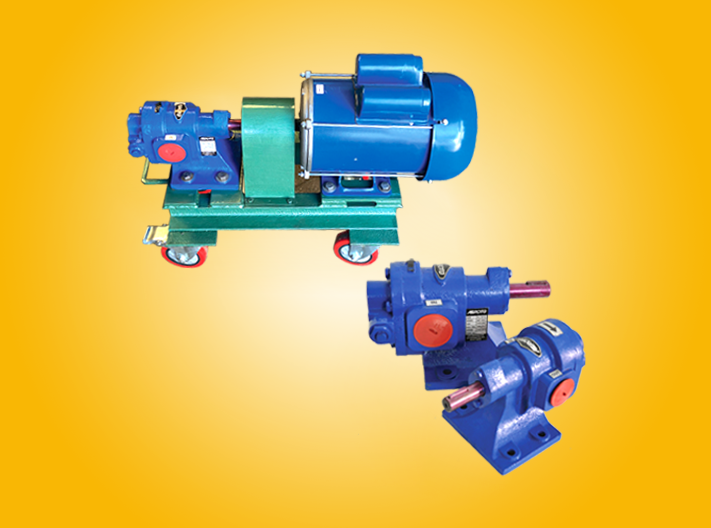

AE-Series AEROTO Gear Pumps
PRODUCTS
The AE-Series AEROTO pumps combines the Quality of both Simplicity & Light-Weight Design to cater a comparitively economical, mechanically efficient & compact solution for any industrial pumping application which can be catered by an External Type Gear-Pump. Applicable for various grades of Oils including edible-oils, Fuels and Viscous Fluids...
Available in :
Sizes : ½” upto 3” Suction/Discharge.
Flow-rate : 20 LPM to 500 LPM @ 1500rpm.
Max. Disch. Pressure : 10 Kg/cm2.
Max. Temperature : 80℃.
Application :
Various Grades of Indl. Oil Transfers, Edible/Vegetable Oil, Bio-Oil, Fish Oil, Transformer Oil,
Lube-Oil, Hydraulic Oil, Waste Oil, Furnace Oil (FO), Viscous Liquid Transfers (at Low RPM) etc.
| Model | Suction & Discharge (BSP Threaded Ends) | Capacity in Ltr/Min (LPM) @ 1500 RPM | Recommended Horse-Power (hp) at Different Pressures For Oil @ 320 cPs (1530 SSU) & Sp.Gr.=0.90 | Weight Of Pump in Kgs.(Approx) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| At 1 Kg/cm2 (H.P.) | At 2 Kg/cm2 (H.P.) | At 3 Kg/cm2 (H.P.) | At 4 Kg/cm2 (H.P.) | At 5 Kg/cm2 (H.P.) | At 6 Kg/cm2 (H.P.) | At 7 Kg/cm2 (H.P.) | At 8 Kg/cm2 (H.P.) | At 9 Kg/cm2 (H.P.) | At 10 Kg/cm2 (H.P.) | ||||
| AE-050 | ½" x ½" | 20 | 0.20 | 0.35 | 0.50 | 0.55 | 0.65 | 0.71 | 0.75 | 0.85 | 0.96 | 1.10 | 2.50 |
| AE-075 | ¾" x ¾" | 30 | 0.30 | 0.50 | 0.75 | 0.85 | 1.00 | 1.10 | 1.13 | 1.30 | 1.44 | 1.60 | 4.70 |
| AE-100 | 1" x 1" | 50 | 0.45 | 1.00 | 1.25 | 1.40 | 1.62 | 1.80 | 1.86 | 2.13 | 2.40 | 2.70 | 5.50 |
| AE-125 | 1¼" x 1¼" | 75 | 0.65 | 1.30 | 1.90 | 2.10 | 2.42 | 2.65 | 2.80 | 3.20 | 3.60 | 4.00 | 9.00 |
| AE-150 | 1½" x 1½" | 110 | 1.00 | 1.90 | 2.80 | 3.10 | 3.55 | 3.90 | 4.10 | 4.70 | 5.30 | 5.85 | 10.80 |
| AE-200 | 2" x 2" | 225 | 2.00 | 3.80 | 4.75 | 6.30 | 7.25 | 7.95 | 8.40 | 9.60 | 10.80 | 12.00 | 19.00 |
| AE-250 | 2½" x 2½" | 350 | 3.00 | 5.90 | 7.35 | 9.80 | 11.30 | 12.35 | 13.05 | 14.90 | 16.75 | 18.60 | 30.00 |
| AE-300 | 3" x 3" | 500 | 6.00 | 8.85 | 11.25 | 13.30 | 15.00 | 16.20 | 17.40 | 18.60 | 20.00 | 21.30 | 40.00 |

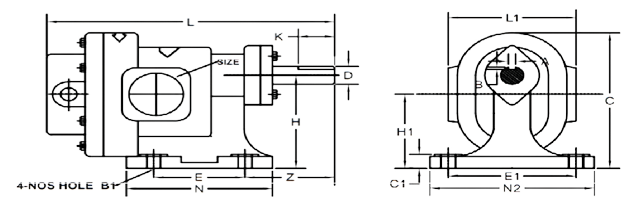

| Model | Size | L | Z | E | E1 | N | H | H1 | C | C1 | K | A | B | D | B1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AE‐050 | ½" BSP | 150 | 50 | 40 | 70 | 68 | 63 | 50 | 90 | 10 | 23 | 4 | 2.5 | 12 | 8 |
| AE‐075 | ¾" BSP | 184 | 63 | 45 | 85 | 80 | 80 | 65 | 114 | 11 | 25 | 5 | 3 | 14 | 10 |
| AE‐100 | 1" BSP | 202 | 64 | 50 | 93 | 96 | 90 | 72 | 128 | 11 | 27 | 5 | 3 | 17 | 10 |
| AE‐125 | 1¼" BSP | 240 | 65 | 60 | 105 | 110 | 100 | 80 | 140 | 11 | 32 | 6 | 3.5 | 20 | 12 |
| AE‐150 | 1½" BSP | 245 | 80 | 70 | 115 | 130 | 110 | 88 | 154 | 14 | 35 | 6 | 3.5 | 22 | 12 |
| AE‐200 | 2" BSP | 306 | 92 | 100 | 140 | 160 | 132 | 105 | 190 | 18 | 40 | 8 | 4 | 25 | 15 |
| AE‐250 | 2½" BSP | 364 | 110 | 120 | 155 | 185 | 145 | 114 | 214 | 22 | 85 | 8 | 4 | 28 | 17 |
| AE‐300 | 3" BSP | 455 | 120 | 235 | 180 | 205 | 160 | 124 | 235 | 26 | 50 | 8 | 4 | 30 | 17 |
